Home >>  Accessories >>  Power&Motors >>  Stepper motor 42SHD0026-20B

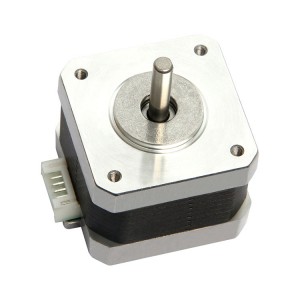

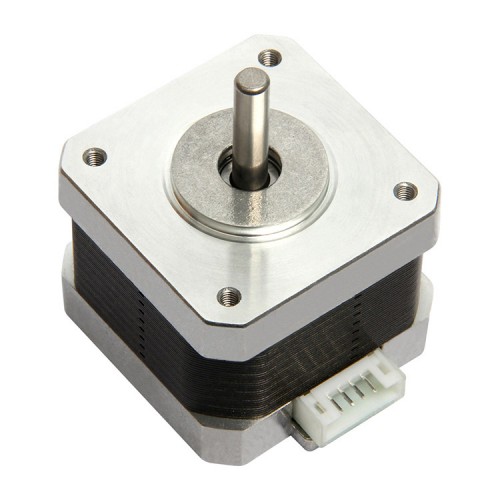

Stepper motor 42SHD0026-20B

  • Stepper motor 42SHD0026-20B
  • Stepper motor 42SHD0026-20B

Stepper motor 42SHD0026-20B

SKU: 700-001-0983 0 Reviews
$12.99
New Customers
Ship from: CN
CN
In Stock: Ship in 24 hours
Shipping: $7.49
QTY:
- +
Secure Payment
Multiple payment options
Payment options:
Customer Service Guarantee
DOA Guarantee
7 Days DOA Guarantee:
If your item arrives damaged, please contact us within 7 days and provide clear and valid proof. Geeetech will make compensation based on the damage situation.
View More
Missing/Wrong Items Guarantee
7 Days Missing/Wrong Items Guarantee:
If you receive a parcel with missing/incorrect/secondary packing items, please contact the merchant within 7days of delivery and provide relevant proof. Geeetech will make compensation based on the damage situation.
View More
Quality Guarantee
Quality Guarantee:
Some of Geeetech items enjoy [Quality Guarantee]. If the item you purchased has quality issues or problems caused by non-users, and enjoys "Quality Guarantee", Geeetech will provide comprehensive after-sale service.
View More
Recommendation
  • $28.00
  • $30.00
  • $17.00
  • $7.90
  • $20.00
  • $14.99
Frequently Bought Together
Stepper motor 42SHD0026-20B
$12.99
  • 5pcs* Nozzle for A10 Pro, A20, A30 Pro Single Extruder 3D Printers, 0.4mm Nozzle, Screw thread M6; Not for A10M/A20M/A30M/A10T/A20T/A30T !!
  • {6KG}PLA Matte Green 3D Printer Filament 1.75mm 1kg/roll
  • PLA Silk Dual 3D Printer Filament 1.75mm 1kg/roll (Gold +Purple )
  • Black Resin, Geeetech UV 405nm Rapid Resin, Water Washable, for LCD/DLP/SLA 3D Printers, 1KG
  • Arduino LEONARDO
  • {10KG}ASA White 3D Printer Filament 1.75mm 1kg/roll
  • TPU Purple 3D Printer Filament 1.75mm 1kg/roll
  • HS-PLA Orange 3D Printer Filament 1.75mm 1kg/roll
  • 2pcs x 1 Meter Transparent Teflon Tube Pipe For Filament+1pcs Tube Cutter, Outer Diameter 4mm, Inner Diameter 2mm
  • {10KG} PLA Silk Gold 3D Printer Filament 1.75mm 1kg/roll
  • PETG Metal Green 3D Printer Filament 1.75mm 1KG/Roll
  • 3D Pen Filament 1.75mm PLA Black, Length 250mm x 50pcs
  • HS-PLA Skin 3D Printer Filament 1.75mm 1kg/roll
  • PLA Silk Dual 3D Printer Filament 1.75mm 1kg/roll (Black+ Red)
  • {10KG}PLA Matte Green 3D Printer Filament 1.75mm 1kg/roll
  • {10KG} PETG Black 3D Printer Filament 1.75mm 1kg/roll
  • {6KG}PLA White 3D Printer Filament 1.75mm 1kg/roll
  • {10KG} PLA Purple 3D Printer Filament 1.75mm 1kg/roll
  • {6KG} PLA Silk Dual 3D Printer Filament 1.75mm 1kg/roll (Gold+Copper)
  • {4KG}PLA Matte Multicolor（black+ white+orange+navy blue ） 3D Printer Filament 1.75mm 1kg/roll
Total Price
Selected 1 items
Price: $ 12.99
Add to cart
You May Also Like
  • Stainless Steel Funnel, Resin Filter Cup for SLA/DLP/LCD Resin 3D Printer UV Resin, Strainer Filter for 3D Printing Liquid
    $12.89
  • Alkaid LCD Printer FEP Sheet * 5 pcs
    $12.90
  • Arduino Touch Button module
    $8.00
  • Arduino Touch Button module
    $5.00
  • Fan extention wire M/M 1200mm
    $3.00
  • Arduino Touch Button module
    $0.60
  • US Version UV Curing Light UV Lights 405nm
    $18.00
  • 3D Printer Brass M6 nozzle for MK8 extruder/0.3mm
    $2.20
  • Alkaid LCD Printer Control Board
    $35.99
  • 5pcs* Nozzle for A10 Pro, A20, A30 Pro Single Extruder 3D Printers, 0.4mm Nozzle, Screw thread M6; Not for A10M/A20M/A30M/A10T/A20T/A30T !!
    $9.99
  • Hotbed for Geeetech M1 3D Printer
    $16.99
  • New Upgrade Removable Spring Steel Magnetic Platform 310*310mm
    $39.99
  • 2pcs LM8LUU Linear bearings
    $5.00
  • Alkaid LCD Printer Resin Tank, including assembly tank * 1 and spare FEP Sheet * 1.
    $12.90
  • 1m PTFE Teflon Tube Pipe 2*4mm For Filament
    $3.00
  • Geeetech 3D Touch V3.2 Pro Auto Leveling Sensor
    $35.99
  • USB Cable A male- B male
    $3.99
  • M1 Series Hot End Components
    $12.98
  • 2pcs* 4010/DC 12V Cooling Fan for Extruder Hotend/ Control Board/40x40x10mm
    $5.00
  • 100Kohm NTC Thermistors for JIETAI hotend
    $2.90
Top Selling
  • 1Stepper motor wire
    $7.90
  • 2I3 PRO B Printer S-180-12 12V 15A DC power supply
    $20.00
  • 3Stepper motor 42SHD0227-24B
    $17.00
  • 4I3 PRO C Printer S-250-12 12V 20A DC power supply
    $28.00
  • 524V 15A DC power supply for A10 A10M A10T A20 A20M A20T
    $30.00
  • Specification
  • Comments (0)
Specification

General specification

Step angle: 1.8°

Number of phase：2

Insulation resistance：100MΩmin. (500V DC)

Insulation class：Class B

Rotor inertia：38g cm2

Mass：0.2kg

Wiring length: 700mm

Connector: XH (2.54mm-4pin)

Net weight: 232g

Shipping weight: 310g



Electrical specification

Rated voltage：5V

Rated voltage: 1.0A

Resistance per phase: 5.0Ω±10%

Inductance per phase: 6.2mH±20%

Holding torque: 300mN.m

Detent torque: 12mN.m
